8 Gang Switch Panel System Circuit Control Relay System

Product Detail

8 Gang Switch Panel System Circuit Control Relay System Fuse Wiring Harness Automatic Dimmable ON Off LED Switch Pod for 12V Cars Trucks Campers SUV

Produc Introduction

Product Name	8 gang switch panel control box
Material	ABS Metal
Input Voltage	DC 12-24V
Current Rating	‎80 Amps
Switch Function	ON-OFF
Mounting Type	‎Panel Mount
Wattage	1200 watts
Product Dimensions	As shown 10 x 6 x 2 inches
Usage	12-24V DC vehicles such as SUVs, RVs, Campers, ATVs, UTVs, RZRs SxS,4 Wheelers, Trucks, Boats, etc

About this item

8 Gang Switch Panel System:Operating voltage: 12-24V DC, the max output power is rating at 1200 Watts. Allows you to control up to 8 different accessories at the same time.A perfectsolution to clean up all messed up wiring harness and control everything through a switch pod. Safety Design: The switch box is equipped with an 80Amp circuit breaker, blade fuses, and high-power solid-state relays. Providing you with thermal protection, overload protection, over-voltage protection, and over-current protection.

The Solid-state relays are built into the circuit control box, rather than being exposed as usual. Much compact, waterproof, and saves space. Universal fitment: This compact size switch panel system is perfect for all installation solutions. It can be installed in any 12-24V DC vehicles such as SUVs, RVs, Campers, ATVs, UTVs, RZRs SxS,4 Wheelers, Trucks, Boats, etc. The switch panel can be installed on the dashboard, center console, overhead sunglasses holder, etc.

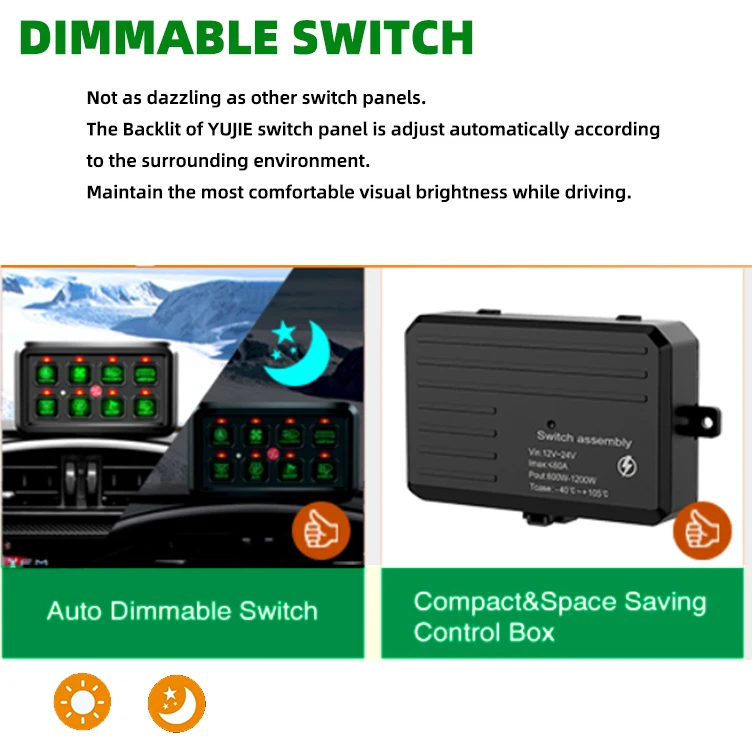

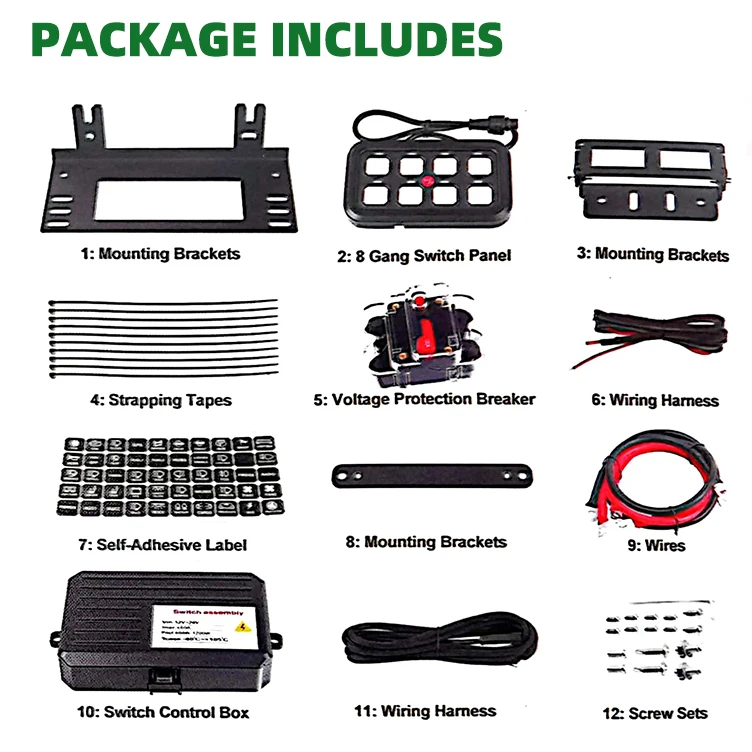

Don't need to cut the hole, you can install it anywhere effortlessly. Panel Backlits Automatic Dimmable: Not as dazzling as other switch panels. The Backlit of YUJIE switch panel is adjust automatically according to the surrounding environment. Maintain the most comfortable visual brightness while driving. All in one Design: The 8 gang switch panel system includes all installation hardwares even the add-a-circuit fuse tap.
